Description

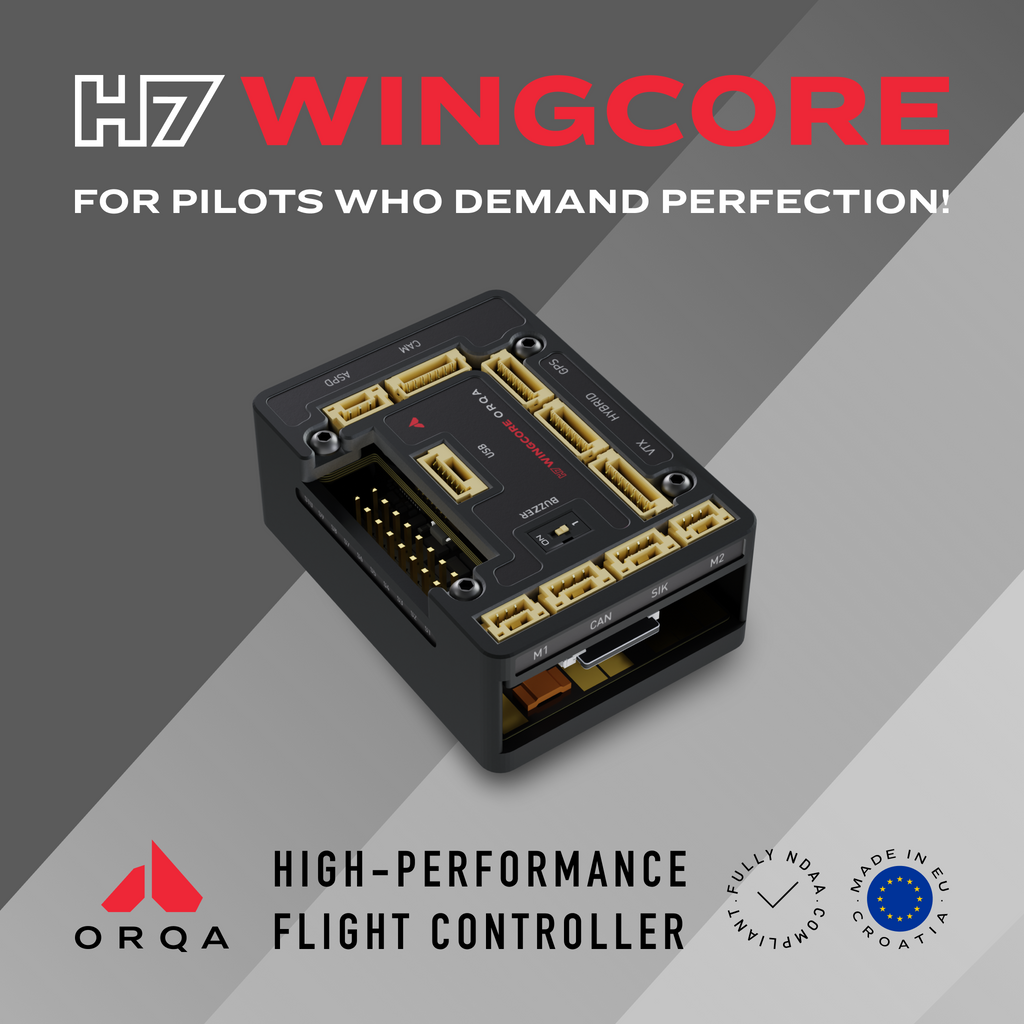

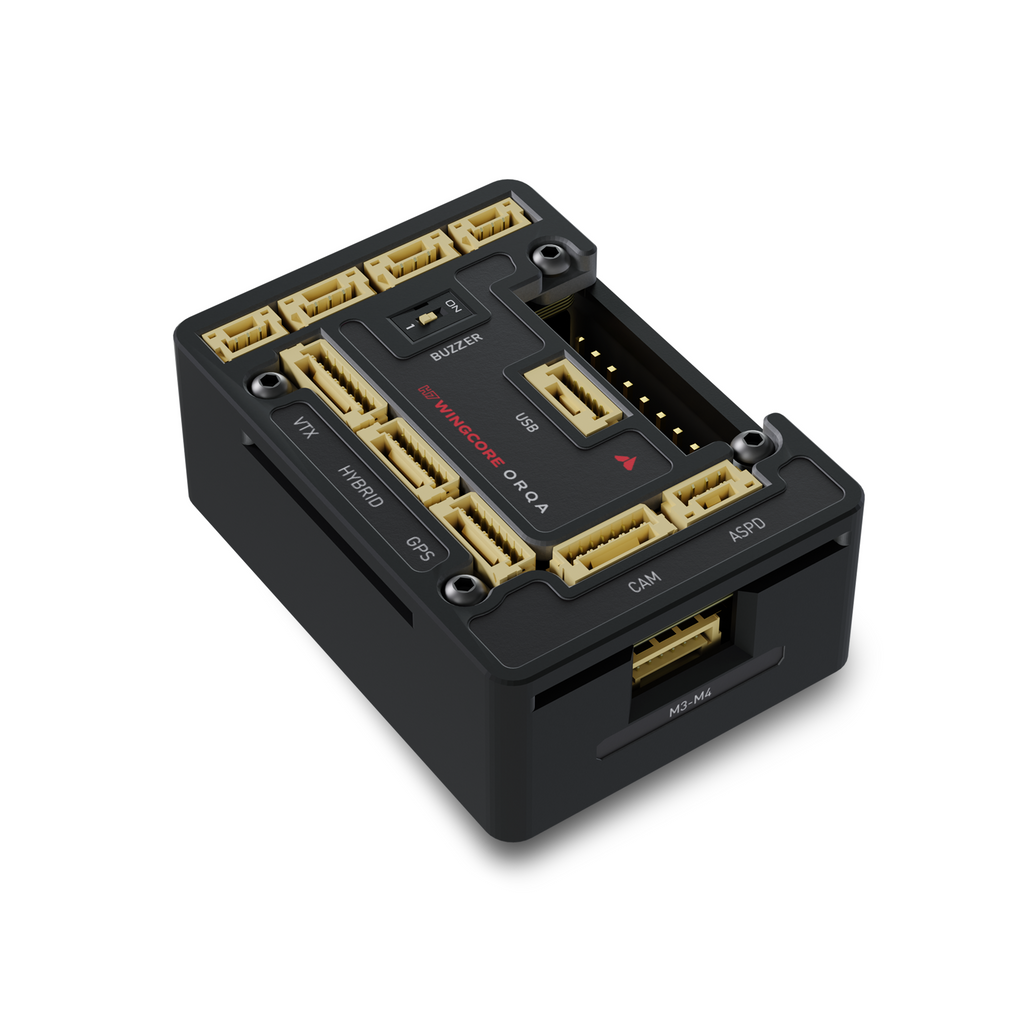

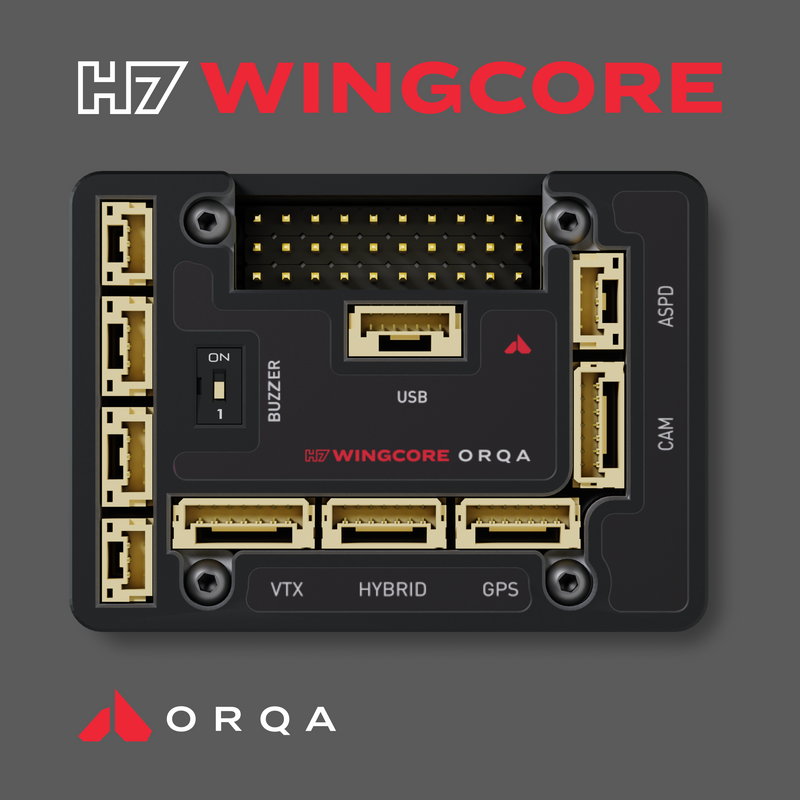

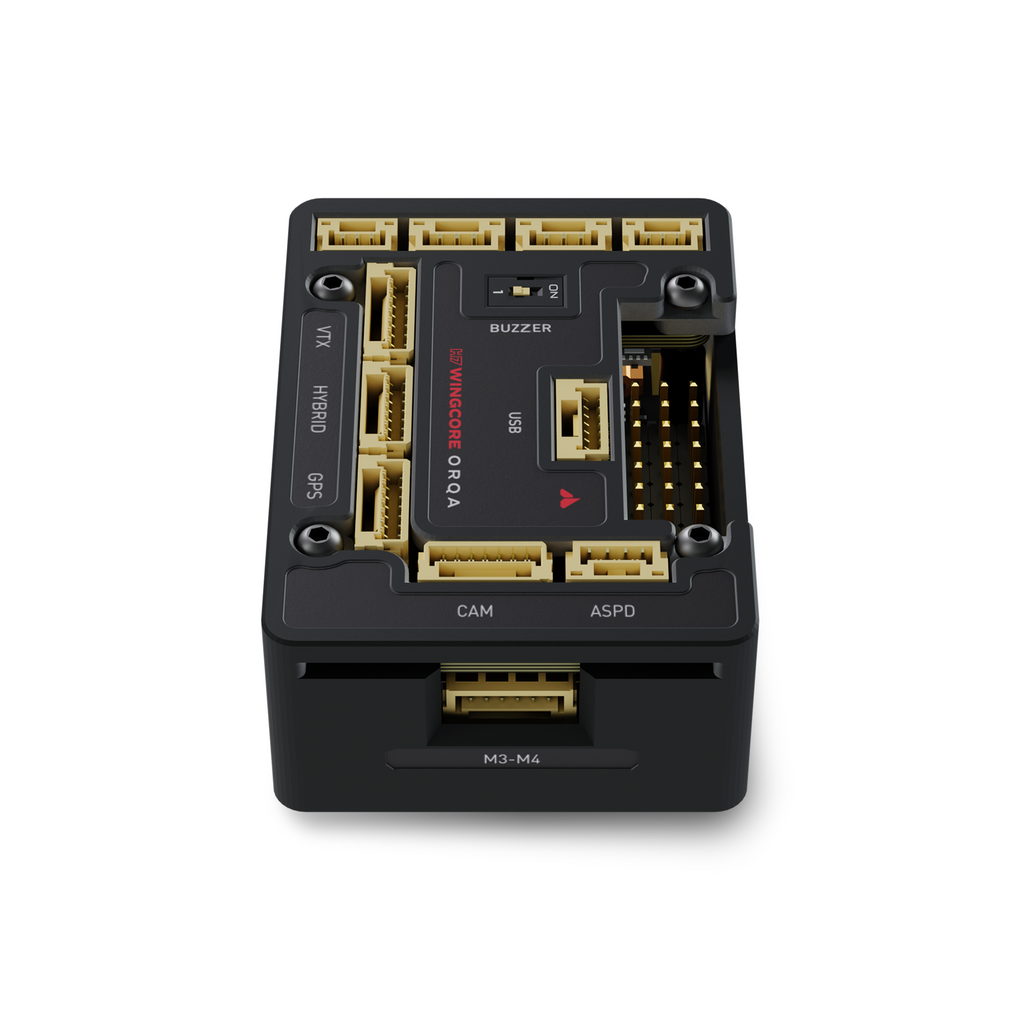

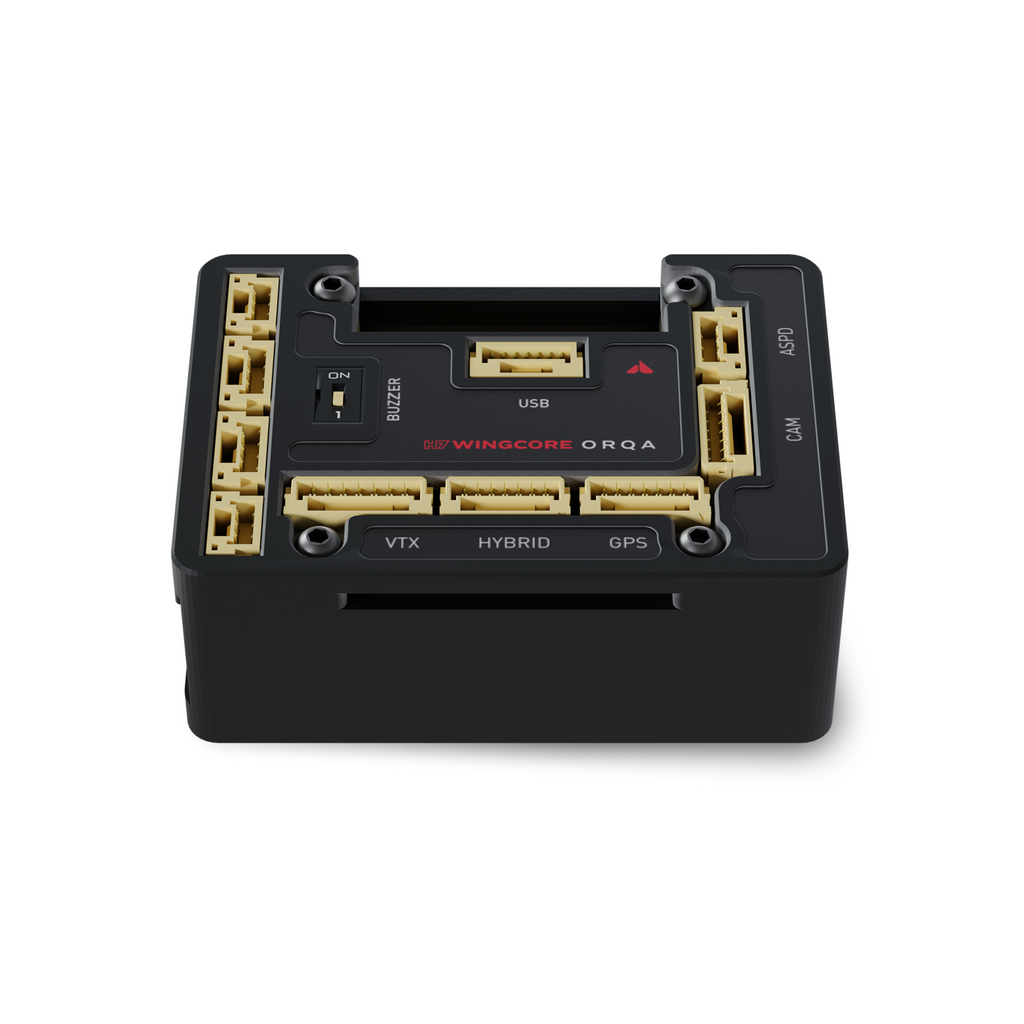

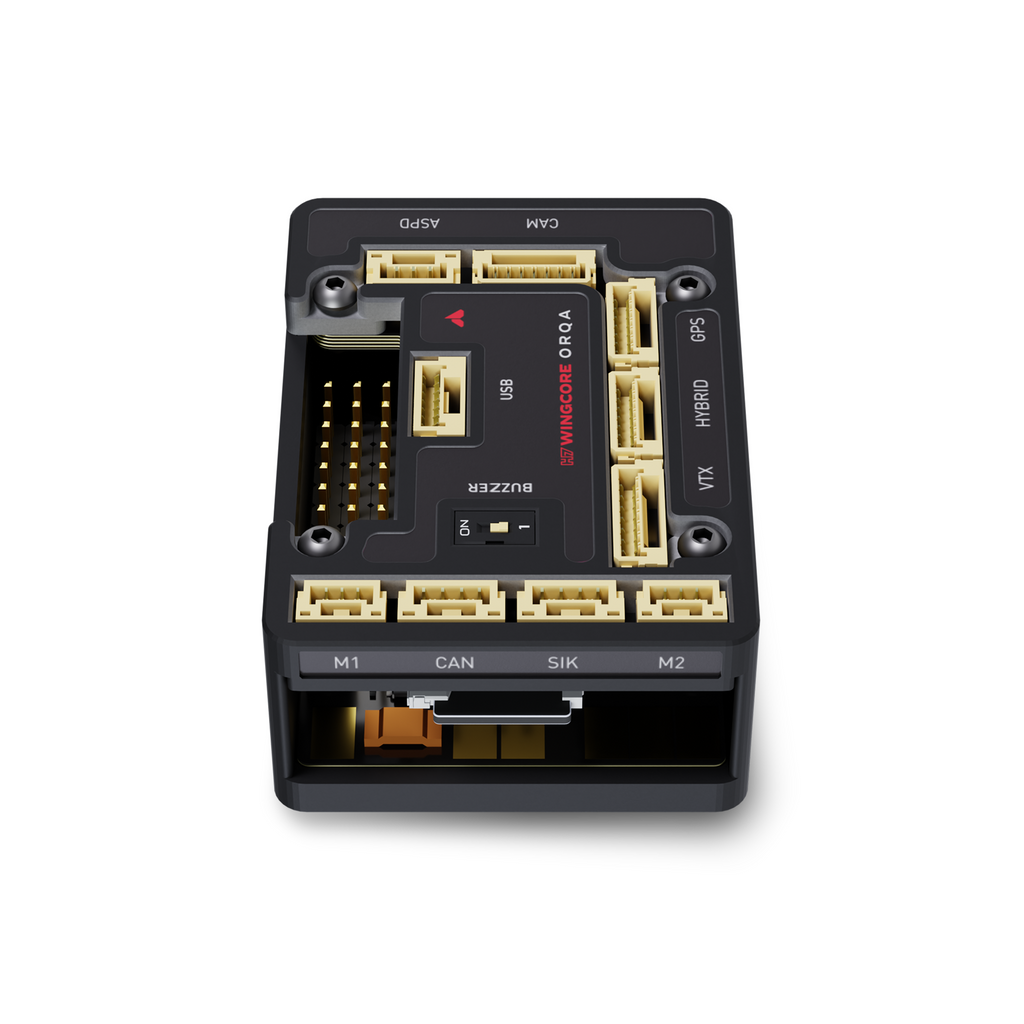

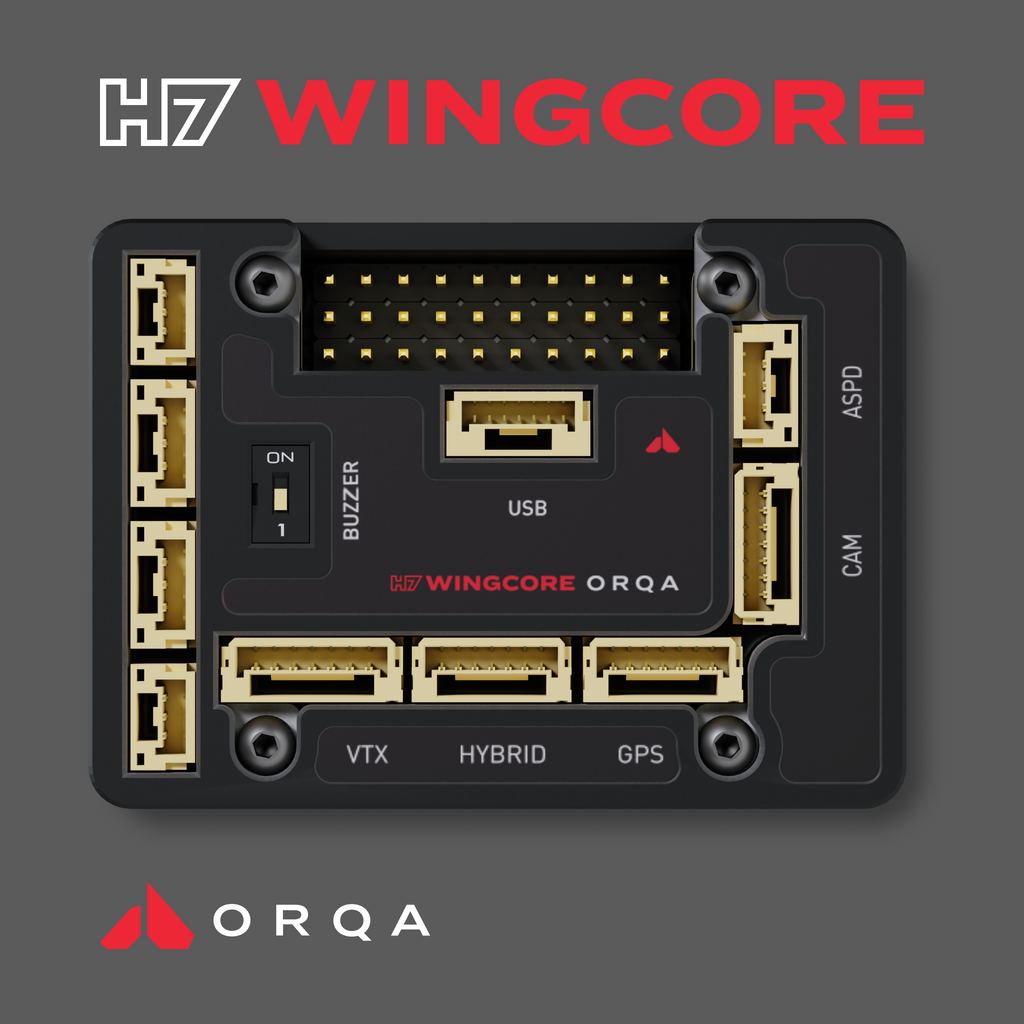

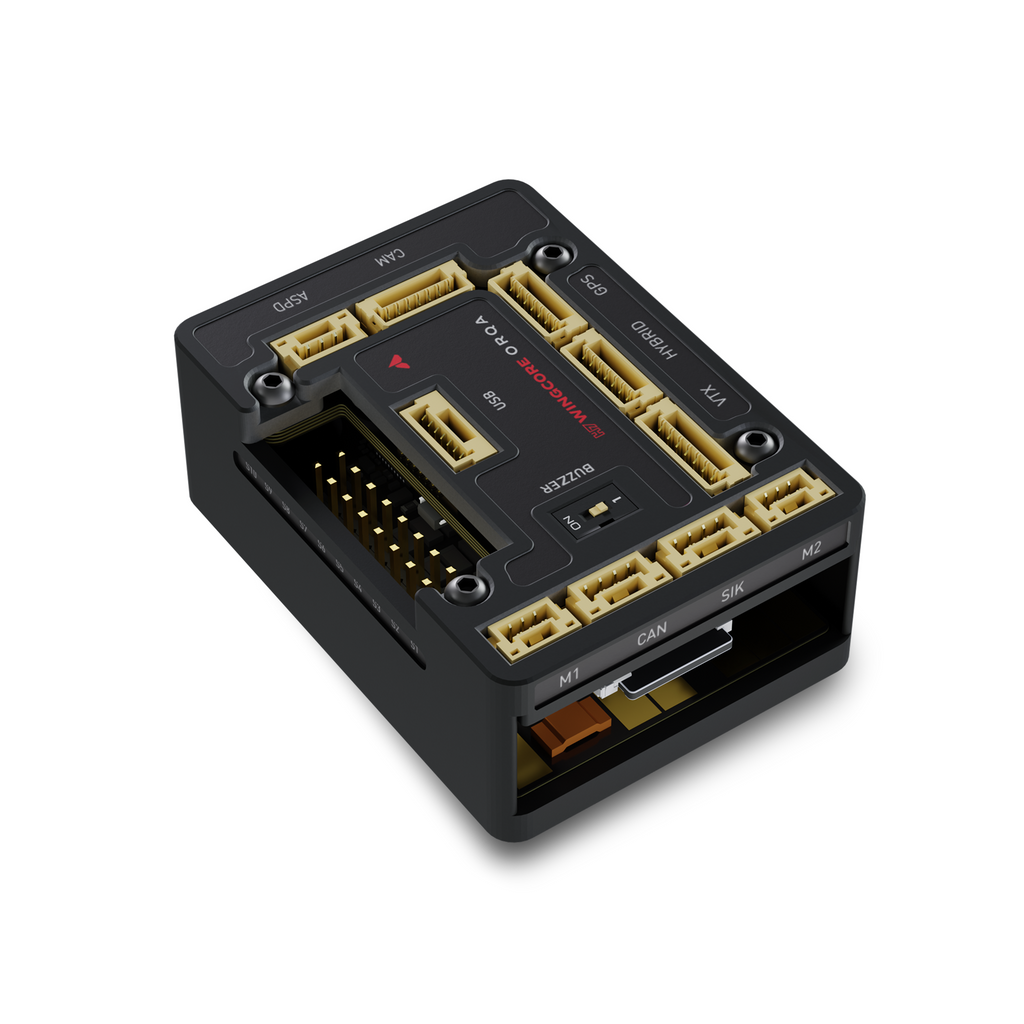

The H7 WingCore is a flight controller designed specifically for fixed wing drones, VTOLS, and UAVs. Comes with a powerful STM32H743 MCU, which runs any of the common flight controller firmware (iNav, ArduPilot, PX4). Equipped with enough servo outputs for even the most complex of fixed wing platforms, including the multi-servo requirements of VTOLs. Direct solder-free connection to most peripherals, including direct connection to Orqa’s long range C2 links, and Video Downlinks.
INCLUDED CABLES & ACCESSORIES
1x Cable FC - Hybrid vTx/C2 Rx (GH 6 pin - GH 6 pin, 150 mm)
1x Cable FC - VTX (GH 7 pin - GH 7 pin, 150 mm)
1x Cable FC - Camera 1 / Camera 2 (GH 6 pin - 2x PicoBlade 3 pin, 200 mm)
1x Cable FC - GPS (GH 6pin - GH 6 pin, 150 mm)
1x Cable FC - ASPD (GH 4pin - GH 4 pin 200 mm)
1x Cable FC - SIK (GH 4 pin - GH 6 pin, 150 mm)
1x Cable FC - CAN (GH 4 pin - GH 4 pin, 150 mm)
1x Cable FC - USB PCB (GH 5 pin - SH 5 pin, 100 mm)
2x Cable FC - Mot (GH 3 pin - GH 3 pin, L=200 mm)
1x Cable FC - Mot3&4 (GH 6 pin - 2 x GH 3 pin, L=200 mm)
1x Cable FC - Battery XT60 (XT60 Male - Open terminal, 200 mm)
1x USB PCB
MCU: STM32H743
IMU: Twin (orthogonal) ICM-42688
Barometer: DPS310
OSD: Orqa’s custom NDAA-Compliant OSD (Text+Graphics)
Power Supply: 11.1VDC - 44.4VDC (3 - 12s LiIon)
BEC: 5V/8A, 6/7.2V/10A
Current Sensor: 160A On-Board
FC Software: iNav, ArduPilot, PX4
Telemetry: SIK Radio
Camera Inputs: Twin analog switchable inputs
Interfaces: 1x full UART, 3x GPIO, 3x ADC, 1x PWM, 1x i2c CAN bus, USB-C,
Micro SD-Card, GPS / Magnetometer 4x Motor Outputs (PWM, Dshot, CAN bus)
Buzzer: On-Board Integrated
Mounting: 30.5 x 30.5 mm
Dimensions: 54 x 39 x 17 mm
Weight: 36.6 g
